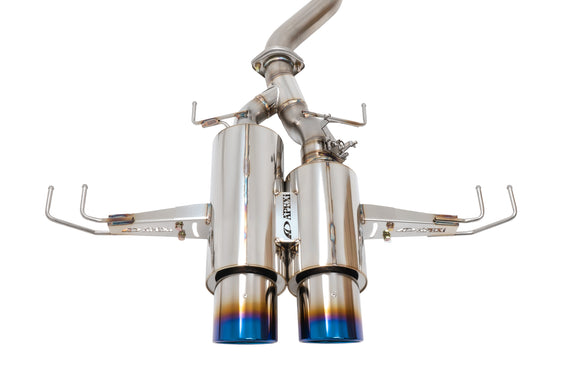

A'PEXi - N1 Evo Extreme (Catback) - 2023+ Honda Civic Type-R [FL5]

PRODUCT FEATURES:
- High-level of quality using tig-welded SUS304 stainless steel uniting quiet performance with high-power performance gains
- Matched and manufactured for select chassis
- Patented Megaphone piping structure to produce excellent torque and throttle response throughout the powerband. This piping design allows for a swirling exhaust gas flow effect that has for years produced proven results.

***Optional Frontpipe Sold Separately (Part No. 145-H003)

Before completing the installation of the exhaust system with the factory OEM Valve Motor System, follow these steps:

1. Uninstall the OE Valve Motor: Remove the OE Valve motor from the factory exhaust and disconnect it from the harness connected to the vehicle.

2. Reset the Valve Motor: Prior to mounting the valve motor on the A'PEXi N1-X Exhaust System, ensure to plug the Valve Motor separately to initiate a factory reset position. This process typically takes around 5-10 seconds to automatically rewind to the reset position. Notably, this reset can be performed without the car being turned on.

3. Reinstall the Valve Motor: Once the Valve Motor has completed its self-reset, remount it onto the bracket and proceed to install both the Valve Motor and the bracket onto the N1-X exhaust system.

Following these steps ensures proper installation and functionality of the exhaust system with the Valve Motor System.
